Hello readers, in this tutorial, developers will learn what AngularJS is and how to toggle the CSS class using the ng-class and ng-click angular directives.
1. Introduction
AngularJS is a JavaScript MVC or Model-View-Controller framework developed by Google that lets developers build well structured, easily testable, and maintainable front-end applications. Before we start with the creation of a real application using the angular framework, let us see the important parts of an angular application.
1.1.1 Templates
In angular, a template is an HTML with added markups. AngularJS library compiles the templates and renders the resultant HTML page.
1.1.2 Directives
Directives are the markers (i.e. attributes) on a DOM element that tell angular to attach a specific behavior to that DOM element or even transform the DOM element and its children. Most of the directives in the angular library start with the prefix ng. Below is the list of important directives that are available in the angular library.
ng-app: Theng-appdirective is a starting point. If the AngularJS framework finds theng-appdirective anywhere in theHTMLdocument, it bootstraps (i.e. initializes) itself and compiles theHTMLtemplateng-model: Theng-modeldirective binds anHTMLelement to a property on the$scopeobject. It also binds the values of AngularJS application data to theHTMLinput controls.ng-bind: Theng-binddirective binds the AngularJS application data to theHTMLtagsng-controller: Theng-controllerdirective specifies a controller in theHTMLelement. This controller will add behavior or maintain the data in thatHTMLelement and its child elementsng-repeat: Theng-repeatdirective repeat a set ofHTMLelements for each item in a given collection
1.1.3 Expressions
An expression is like a JavaScript code usually wrapped inside the double curly braces such as {{ expression }}. AngularJS library evaluates the expression and produces a result.
These new APIs make developer’s life easier, really! But it would be difficult for a beginner to understand this without an example. Therefore, let us create a simple application using the ng-class and ng-click angular directives.
2. AngularJS Toggle Class Using Ng-click Example
Here is a step-by-step guide for implementing this tutorial in the angular applications.
2.1 Tools Used
We are using Eclipse Kepler SR2, JDK 8 and Maven. Having said that, we have tested the code against JDK 1.7 and it works well.

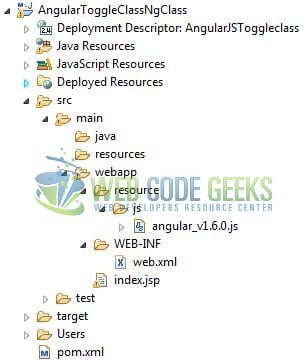

2.2 Project Structure
Firstly, let’s review the final project structure if you are confused about where you should create the corresponding files or folder later!
2.3 Project Creation
This section will show how to create a Java-based Maven project with Eclipse. In Eclipse Ide, go to File -> New -> Maven Project.
In the New Maven Project window, it will ask you to select project location. By default, ‘Use default workspace location’ will be selected. Just click on next button to proceed.
Select the ‘Maven Web App’ Archetype from the list of options and click next.
It will ask you to ‘Enter the group and the artifact id for the project’. We will enter the details as shown in the below image. The version number will be by default: 0.0.1-SNAPSHOT.
Click on Finish and the creation of a maven project is completed. If you see, it has downloaded the maven dependencies and a pom.xml file will be created. It will have the following code:
pom.xml
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <groupId>com.angular</groupId> <artifactId>AngularToggleClassNgClass</artifactId> <version>0.0.1-SNAPSHOT</version> <packaging>war</packaging> </project>
Let’s start building the application!
3. Application Building
Let’s create an application to understand the basic building blocks of this tutorial.
3.1 Load the AngularJS framework
Since it is a pure JavaScript framework, we should add its reference using the <script> tag.
<script type="text/javascript" src="https://www.webcodegeeks.com/wp-content/litespeed/localres/aHR0cHM6Ly9hamF4Lmdvb2dsZWFwaXMuY29tL2FqYXgvlibs/angularjs/1.7.2/angular.min.js"></script>
3.2 Define the AngularJS application
Next, we will define the AngularJS application using the <ng-app>, <ng-controller> directives.
index.jsp
<div ng-app="app" ng-controller="ctrl"> <button type="button" ng-click="someFunction()">Toggle</button> <div ng-class="myClass"> Some text. </div> </div>
3.3 Complete Application
In this example, we will use the ng-click angular directive to call and execute a function on a button click. To illustrate further, we are displaying a sample text that will change its font-color on a button click. Complete the above steps and I will show you how to use the ng-class angular directive to change the font color on a button click. Let’s see the sample code snippet.
index.jsp
<!DOCTYPE html>
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>AngularJS ToggleClass</title>
<!-- AngularJs File -->
<script type="text/javascript" src="resource/js/angular_v1.6.0.js"></script>
<!-- Bootstrap Css -->
<link rel="stylesheet" href="https://www.webcodegeeks.com/wp-content/litespeed/localres/aHR0cHM6Ly9tYXhjZG4uYm9vdHN0cmFwY2RuLmNvbS8=bootstrap/4.0.0/css/bootstrap.min.css">
<script type="text/javascript">
var mainApp = angular.module("app", []);
mainApp.controller('ctrl', ['$scope', function ($scope) {
$scope.myClass = { red: false };
// Method to toggle the css class.
$scope.toggleClass = function() {
$scope.myClass.red = !$scope.myClass.red;
}
}]);
</script>
<style type="text/css">
.red {
color:red;
}
</style>
</head>
<body>
<div id="angularToggle" class="container">
<h1 align="center" class="text-primary">AngularJS - Toggle Class Example</h1>
<hr />
<!------ AngularJs Toggle CSS Class Example ------>
<div ng-app="app" ng-controller="ctrl">
<button type="button" class="btn btn-outline-primary" ng-click="toggleClass()">Toggle</button>
<div> </div>
<div id="divId" ng-class="myClass">
This text color can be changed on button toggle.
</div>
</div>
</div>
</body>
</html>
4. Run the Application
As we are ready for all the changes, let us compile the project and deploy the application on the Tomcat7 server. To deploy the application on Tomat7, right-click on the project and navigate to Run as -> Run on Server.
Tomcat will deploy the application in its web-apps folder and shall start its execution to deploy the project so that we can go ahead and test it in the browser.
5. Project Demo
Open your favorite browser and hit the following URL. The output page will be displayed.
http://localhost:8082/AngularToggleClassNgClass/
Server name (localhost) and port (8082) may vary as per your Tomcat configuration.
Developers can click the Toggle button to change the font color of a sample text. That’s all for this post. Happy Learning!
6. Conclusion
In this section, developers learned how to create a simple angular application to change the font-color of a sample text using the ng-click directive. Developers can download the sample application as an Eclipse project in the Downloads section.
7. Download the Eclipse Project
This was an example of calling and executing a function to toggle the CSS class using the ng-click angular directive in the AngularJS framework.
You can download the full source code of this example here: AngularToggleClassNgClick
