A Step By Step Guide For Deploying & Managing A PHP Application On Docker LAMP, LAPP, And LAOP Stacks
To run & manage the 9 PHP application templates (LAMP, LAPP, and LAOP Stacks) in this project on 13 different clouds and virtualization platforms (including vSphere, OpenStack, AWS, Rackspace, Microsoft Azure, Google Compute Engine, DigitalOcean, IBM SoftLayer, etc.), make sure that you either:
- Sign Up for FREE on DCHQ.io — http://dchq.io (no credit card required), or
- Download DCHQ On-Premise Standard Edition for FREE — http://dchq.co/dchq-on-premise-download.html
https://www.youtube.com/watch?v=zgEhMbAeb4o
Customize & Run any of the published Docker PHP application templates (including the LAMP, LAPP, and LAOP Stacks) and many other templates (including multi-tier Java application stacks, Mongo Replica Set Cluster, Drupal, WordPress, MEAN.JS, etc.)
Background
Containerizing enterprise applications is still a challenge mostly because existing application composition frameworks do not address complex dependencies, external integrations or auto-scaling workflows post-provision. Moreover, the ephemeral design of containers meant that developers had to spin up new containers and re-create the complex dependencies & external integrations with every version update.
DCHQ, available in hosted and on-premise versions, addresses all of these challenges and simplifies the containerization of enterprise applications through an advanced application composition framework that extends Docker Compose with cross-image environment variable bindings, extensible BASH script plug-ins that can be invoked at request time or post-provision, and application clustering for high availability across multiple hosts or regions with support for auto scaling.
Once an application is provisioned, a user can monitor the CPU, Memory, & I/O of the running containers, get notifications & alerts, and get access to application backups, automatic scale in/out workflows, and plug-in execution workflows to update running containers. Moreover, automated “App Run” allows users to integrate their Continuous Integration workflows to schedule the deployment of containers for their nightly builds or whenever changes are merged in GitHub.
In previous blogs, we demonstrated the end-to-end deployment automation of various Java applications (like Pizza Shop and Movie Store apps) on multi-tier Docker-based application stacks across 13 different clouds & virtualization platforms. For full list of these blogs, you can visit this page: http://dchq.co/docker-java-applications.html
However many users were still confused on some of the fundamental aspects of application modeling. These questions include:
- Where do these environment variables come from in your YAML-based application template?
- How is the database initialized with the proper schemas needed from my PHP application?

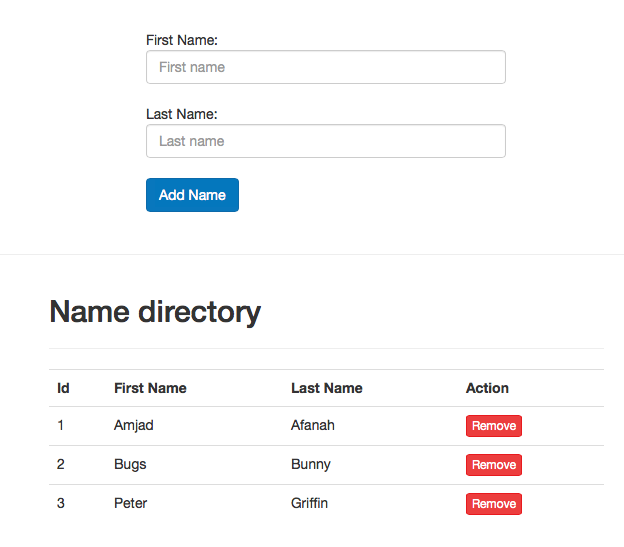

To address these questions, we created a sample “Names Directory” PHP application in this GitHub project that can be deployed on these application stacks:
- Docker LAMP Stack (Linux-Apache-MySQL-PHP)
- Docker LAPP Stack (Linux-Apache-PostgreSQL-PHP)
- Docker LAOP Stack (Linux-Apache-Oracle-PHP)
In this project, we will provide a step-by-step guide for configuring, deploying and managing this PHP application using different application stacks and on different cloud/virtual infrastructure.
We will cover:
- Configuring the config.php the PHP application
- Initializing the database for the PHP application
- Building the Docker Image Using php:5.6-apache
- Building the YAML-based application templates that can re-used on any Linux host running anywhere
- Provisioning & auto-scaling the underlying infrastructure on any cloud (with Rackspace being the example in this blog)
- Deploying the multi-tier PHP application on the Rackspace cluster
- Monitoring the CPU, Memory & I/O of the Running Containers
- Enabling the Continuous Integration Using Automated App Run
- Scaling out the PHP application
Configuring the config.php the PHP application
You can clone this sample “Names Directory” PHP application from GitHub.
This is the most important step in “Dockerizing” your PHP application. In order to leverage the environment variables you can pass when running containers, you will need to make sure that your application is configured in a way that will allow you to change certain properties at request time – like:
- The database driver you would like to use
- The database URL
- The database credentials
- Any other parameters that you would like to change at request time (e.g. the min/max connection pool size, idle timeout, etc.)

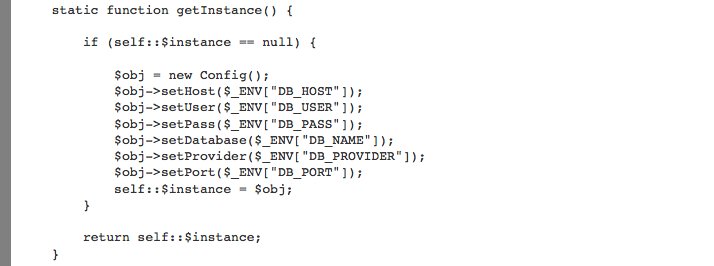

To achieve this, you will first need to configure config.php.
You will notice that specific data-source properties are referencing the following environment variables that will be passed on at request time:
- DB_HOST
- DB_USER
- DB_PASS
- DB_NAME
- DB_PROVIDER
- DB_PORT

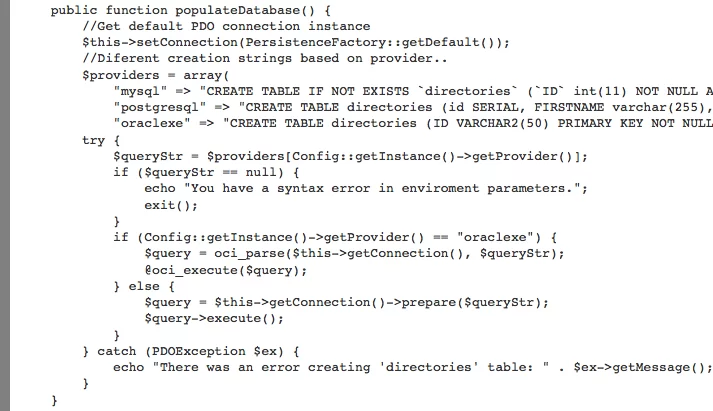

Initializing the database for the PHP application
We typically recommend initializing the database schema as part of the PHP application deployment itself. This way, you don’t have to worry about maintaining separate SQL files that need to be executed on the database separately.
However if you already have those SQL files and you still prefer executing them on the database separately – then DCHQ can help you automate this process through its plug-in framework. You can refer to this section for more information.

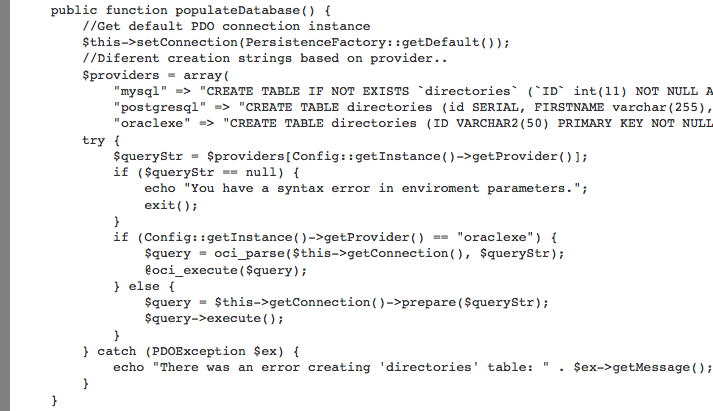

In order to include the SQL scripts for creating the database tables in the PHP application, you will need to configure Persistence.php file to populate the database using different SQL statements (depending on the database used). The populateDatabase() function works with MySQL, PostgreSQL and Oracle.
Building the Docker Image Using php:5.6-apache
Once the PHP application is configured, you simply need to create a Docker image with your PHP code.

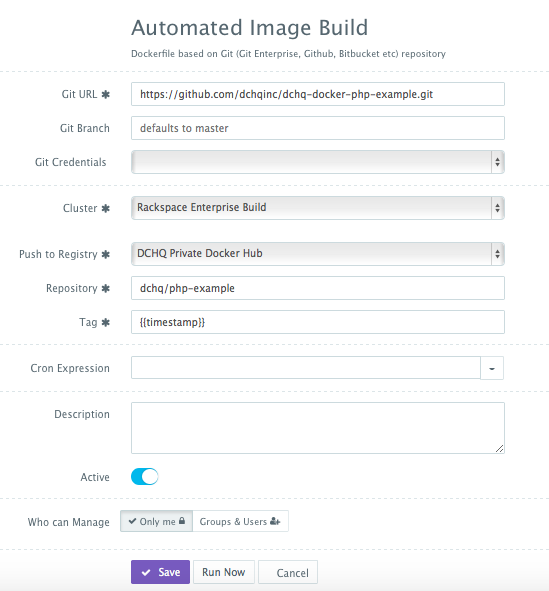

Once logged in to DCHQ (either the hosted DCHQ.io or on-premise version), a user can navigate to Automate > Image Build and then click on the + button to create a new Dockerfile (Git/GitHub/BitBucket) image build.
Provide the required values as follows:
- Git URL – https://github.com/dchqinc/dchq-docker-php-example.git
- Git Branch – this field is optional — but a user can specify a branch from a GitHub project. The default branch is master.
- Git Credentials – a user can store the credentials to a private GitHub repository securely in DCHQ. This can be done by navigating to Manage > Cloud Providers and Repos and clicking on the + to select Credentials
- Cluster – the building of Docker images is orchestrated through the DCHQ agent. As a result, a user needs to select a cluster on which an agent will be used to execute the building of Docker images. If a cluster has not been created yet, please refer to this section to either register already running hosts or automate the provisioning of new virtual infrastructure.
- Push to Registry – a user can push the newly created image on either a public or private repository on Docker Hub or Quay. To register a Docker Hub or Quay account, a user should navigate to Manage > Cloud Providers and Repos and clicking on the + to select Docker Registries
- Repository – this is the name of the repository on which the image will be pushed. For example, our image was pushed to dchq/php-example:latest
- Tag – this is the tag name that you would like to give for the new image. The supported tag names in DCHQ include:
- {{date}} — formatted date
- {{timestamp}} — the full time-stamp
- Cron Expression – a user can schedule the building of Docker images using out-of-box cron expressions. This facilitates daily and nightly builds for users.
Once the required fields are completed, a user can click Save.
A user can then click on the Play Button to build the Docker image on-demand.

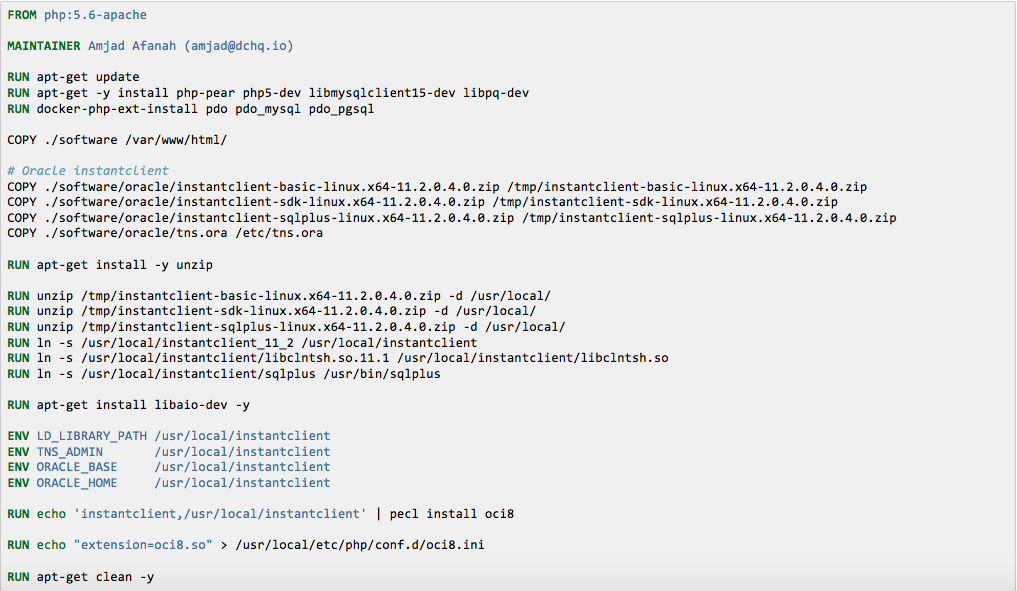

Here’s the actual Dockerfile used to build this Docker image from this GitHub repository:
Building the YAML-based application templates that can re-used on any Linux host running anywhere
Once logged in to DCHQ (either the hosted DCHQ.io or on-premise version), a user can navigate to Manage > Templates and then click on the + button to create a new Docker Compose template.
We have created 9 application templates using the official images from Docker Hub for the same “Names Directory” PHP application – but for different application servers and databases.
The templates include examples of the following application stacks (for the same PHP application):
- Docker LAMP Stack (Linux-Apache-MySQL-PHP)
- Docker LAPP Stack (Linux-Apache-PostgreSQL-PHP)
- Docker LAOP Stack (Linux-Apache-Oracle-XE-PHP)
- Docker LAMP Stack (3-Tier Nginx-PHP-MySQL)
- Docker LAPP Stack (3-Tier Nginx-PHP-PostgreSQL)
- Docker LAOP Stack (3-Tier Nginx-PHP-Oracle-XE)
- Docker LAMP Stack (3-Tier Apache-HTTP-PHP-MySQL)
- Docker LAPP Stack (3-Tier Apache-HTTP-PHP-PostgreSQL)
- Docker LAOP Stack (3-Tier Apache-HTTP-PHP-Oracle-XE)
Environment Variable Bindings Across Images
Additionally, a user can create cross-image environment variable bindings by making a reference to another image’s environment variable. In this case, we have made several bindings – including DB_HOST={{MySQL|container_private_ip}} – in which the database container IP is resolved dynamically at request time and is used to ensure that the Apache-PHP Server can establish a connection with the database.
Here is a list of supported environment variable values:
- {{alphanumeric | 8}} – creates a random 8-character alphanumeric string. This is most useful for creating random passwords.
- {{Image Name | ip}} – allows you to enter the host IP address of a container as a value for an environment variable. This is most useful for allowing the middleware tier to establish a connection with the database.
- {{Image Name | container_ip}} – allows you to enter the name of a container as a value for an environment variable. This is most useful for allowing the middleware tier to establish a secure connection with the database (without exposing the database port).
- {{Image Name | container_private_ip}} – allows you to enter the internal IP of a container as a value for an environment variable. This is most useful for allowing the middleware tier to establish a secure connection with the database (without exposing the database port).
- {{Image Name | port_Port Number}} – allows you to enter the Port number of a container as a value for an environment variable. This is most useful for allowing the middleware tier to establish a connection with the database. In this case, the port number specified needs to be the internal port number – i.e. not the external port that is allocated to the container. For example, {{PostgreSQL | port_5432}} will be translated to the actual external port that will allow the middleware tier to establish a connection with the database.
- {{Image Name | Environment Variable Name}} – allows you to enter the value an image’s environment variable into another image’s environment variable. The use cases here are endless – as most multi-tier applications will have cross-image dependencies.

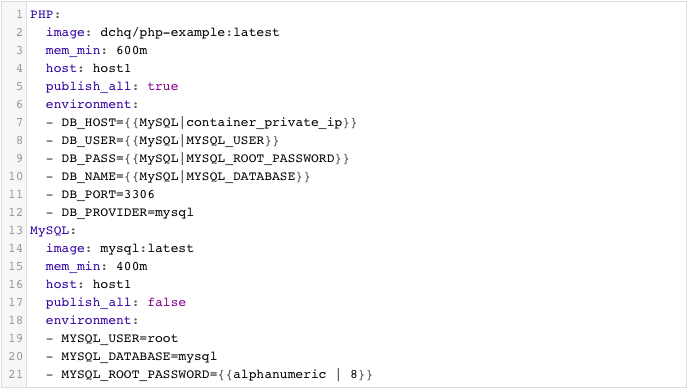

LAMP Stack (Linux-Apache-MySQL-PHP)

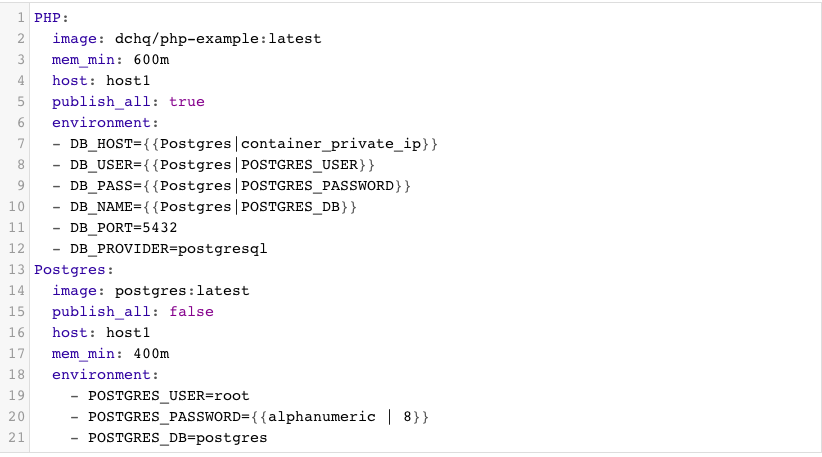

LAPP Stack (Linux-Apache-PostgreSQL-PHP)

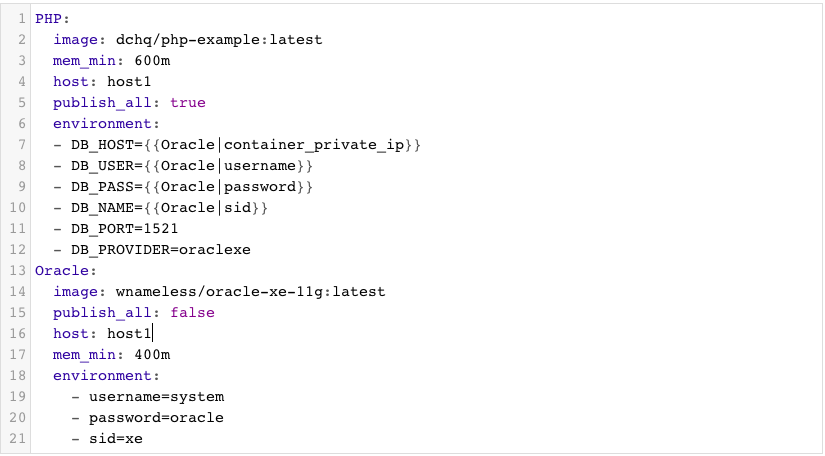

LAOP Stack (Linux-Apache-Oracle-PHP)

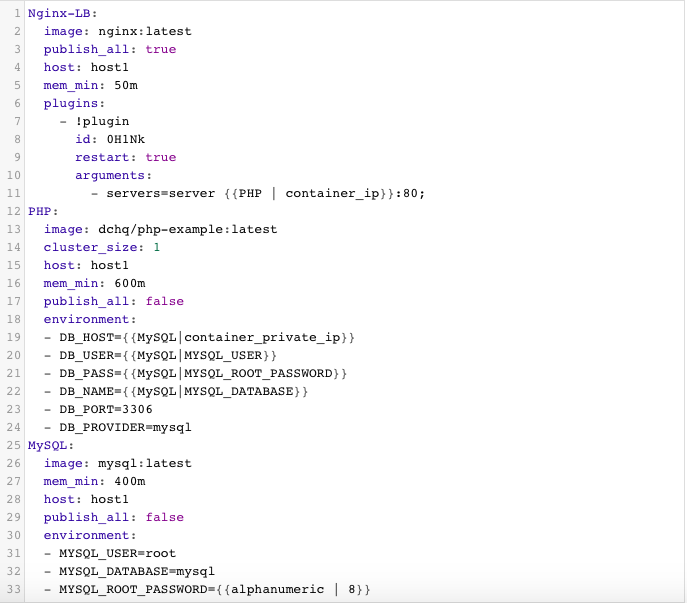

LAMP Stack (3-Tier Nginx-PHP-MySQL)

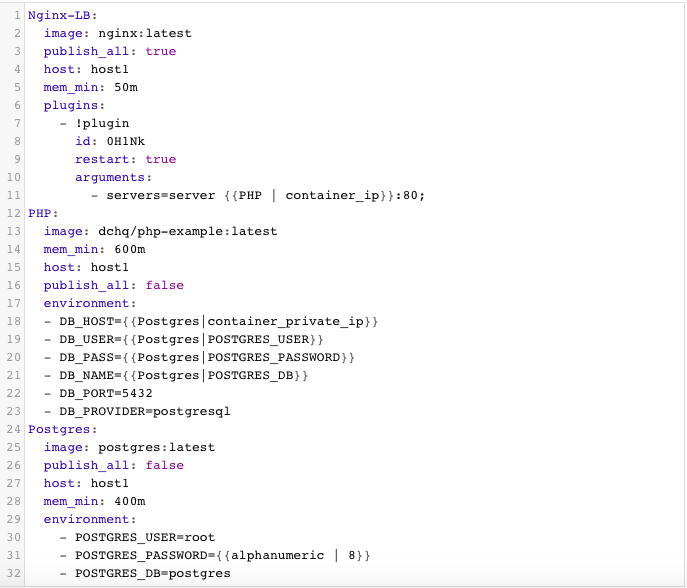

LAPP Stack (3-Tier Nginx-PHP-PostgreSQL)

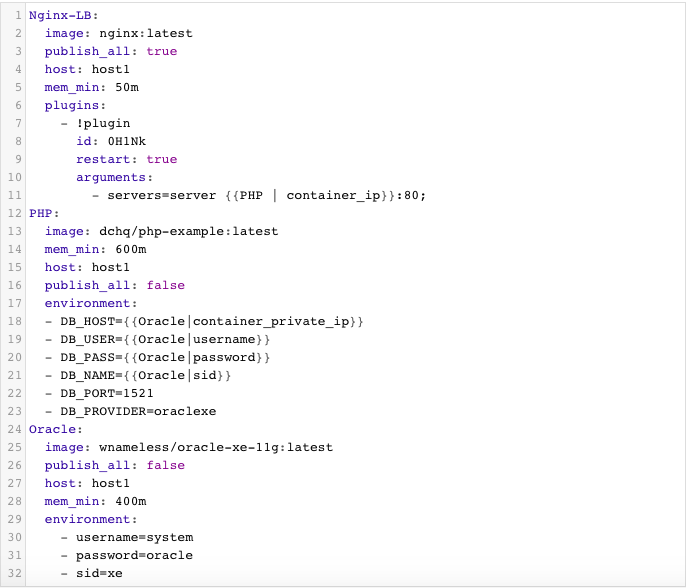

LAOP Stack (3-Tier Nginx-PHP-Oracle-XE)

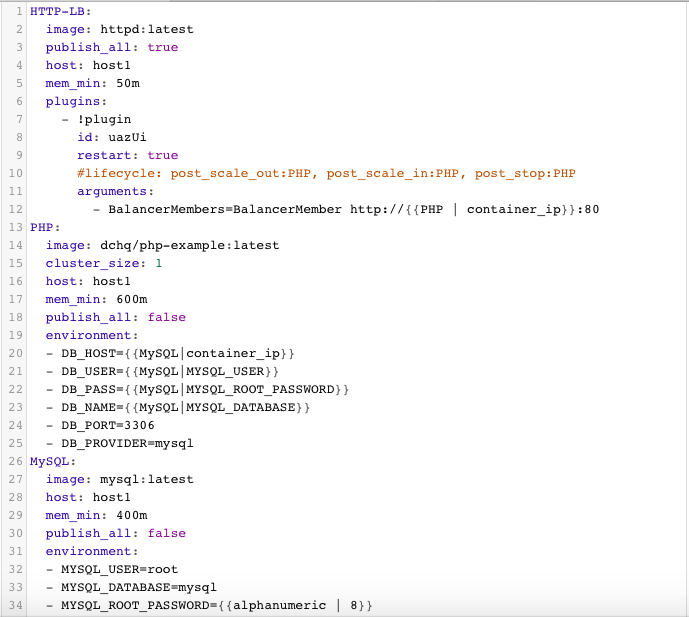

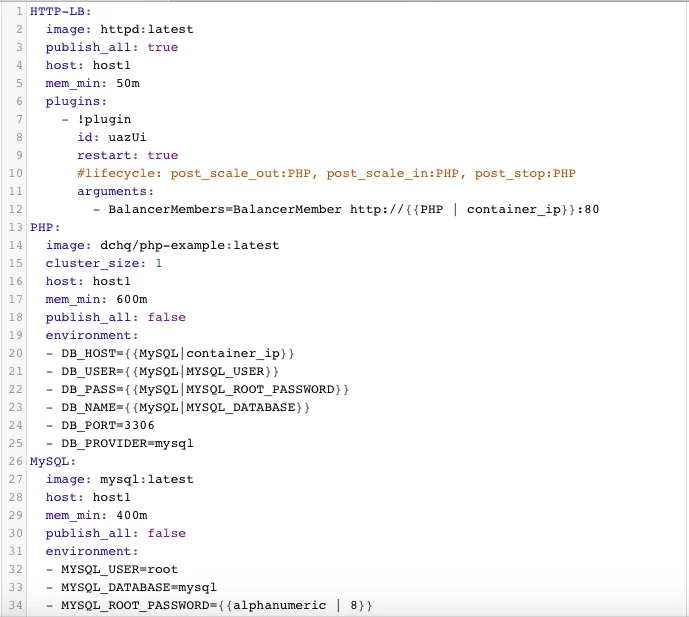

LAMP Stack (3-Tier ApacheHTTP-PHP-MySQL)

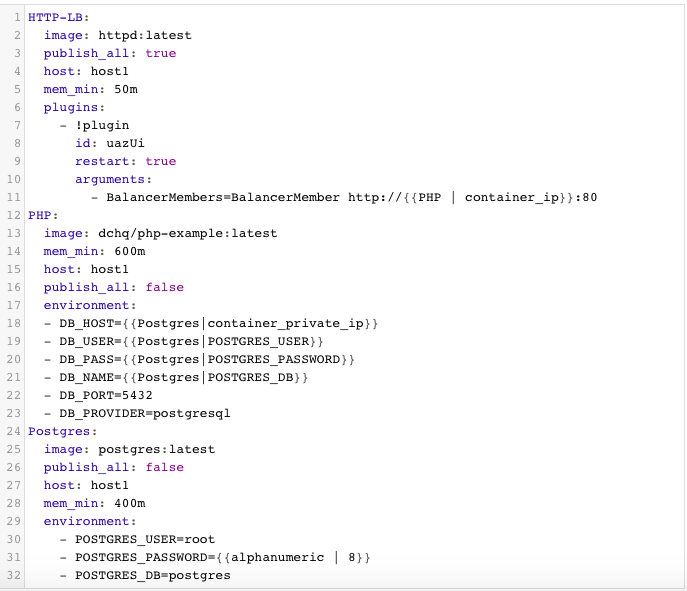

LAPP Stack (3-Tier ApacheHTTP-PHP-PostgreSQL)

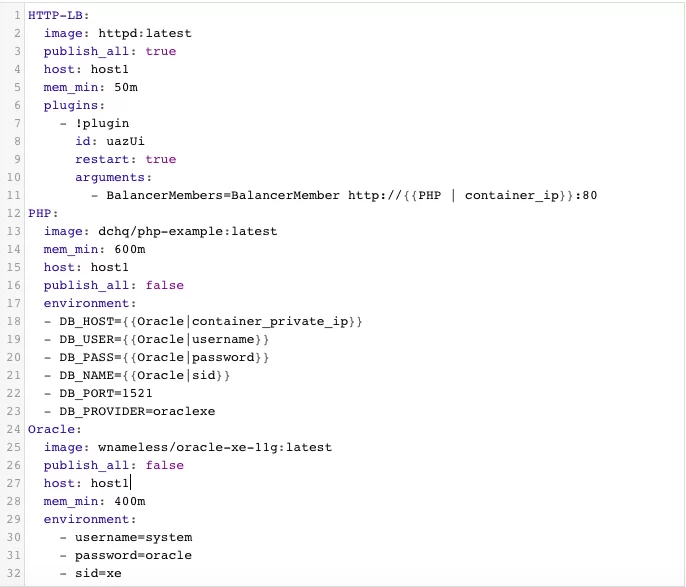

LAOP Stack (3-Tier ApacheHTTP-PHP-Oracle-XE)
Invoking a plug-in to initialize the database separately on a Docker LAMP Stack
We recommend initializing the database schema as part of the PHP application deployment itself. However if you still prefer executing the SQL files on the database separately – then DCHQ can help you automate this process through its plug-in framework.

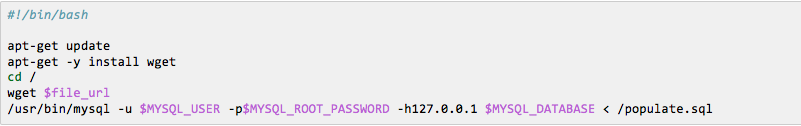

In this example, MySQL in this LAMP stack is invoking a BASH script plug-in to execute the populate.sql file. The BASH script plug-in was created by navigating to Manage > Plug-ins and looks something like this:
In this BASH script plug-in, $MYSQL_USER, $MYSQL_ROOT_PASSWORD, and $MYSQL_DATABASE are environment variables that are passed at request time.
$file_url is an overrideable argument that you can define when creating the plug-in or when requesting the application. This will be the URL for the populate.sql file.
Provisioning & Auto-Scaling the Underlying Infrastructure on Any Cloud
Once an application is saved, a user can register a Cloud Provider to automate the provisioning and auto-scaling of clusters on 12 different cloud end-points including VMware vSphere, OpenStack, CloudStack, Amazon Web Services, Rackspace, Microsoft Azure, DigitalOcean, IBM SoftLayer, Google Compute Engine, and many others.

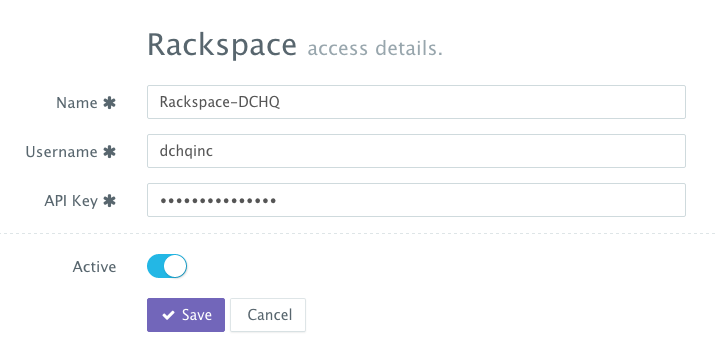

First, a user can register a Cloud Provider for Rackspace (for example) by navigating to Manage > Cloud Providers & Repos and then clicking on the + button to select Rackspace. The Rackspace API Key needs to be provided – which can be retrieved from the Account Settings section of the Rackspace Cloud Control Panel.

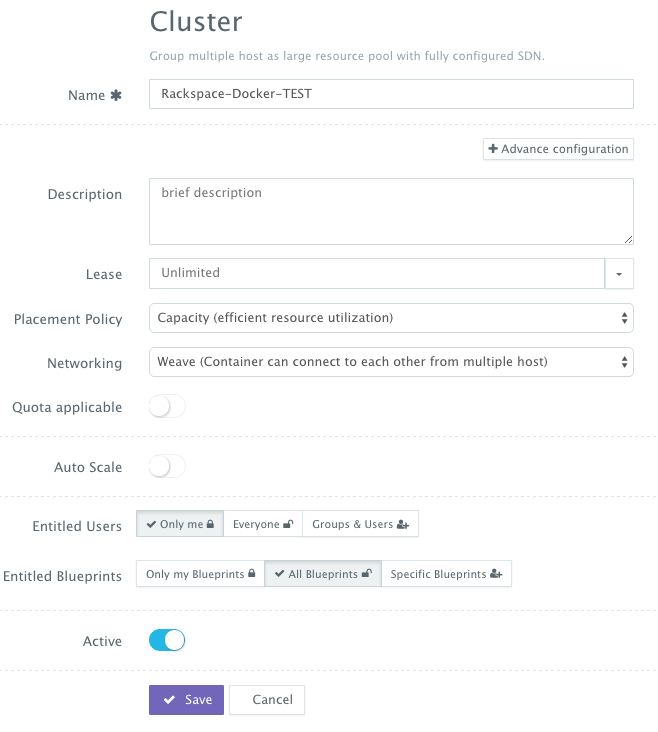

A user can then create a cluster with an auto-scale policy to automatically spin up new Cloud Servers. This can be done by navigating to Manage > Clusters page and then clicking on the + button. You can select a capacity-based placement policy and then Weave as the networking layer in order to facilitate secure, password-protected cross-container communication across multiple hosts within a cluster. The Auto-Scale Policy for example, may set the maximum number of VM’s (or Cloud Servers) to 10.
A user can now provision a number of Cloud Servers on the newly created cluster either through the UI-based workflow or by defining a simple YAML-based Machine Compose template that can be requested from the Self-Service Library.

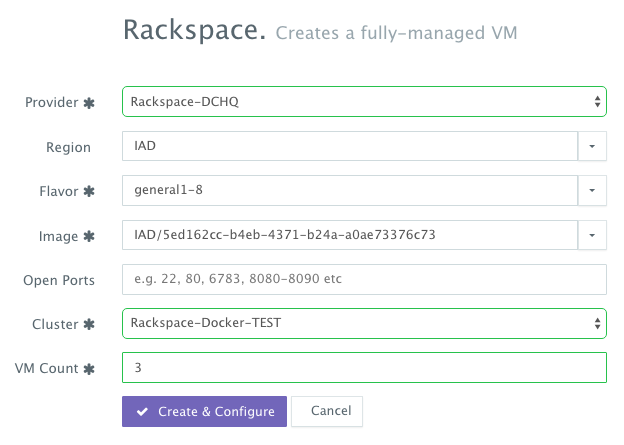

UI-based Workflow – A user can request Rackspace Cloud Servers by navigating to Manage > Hosts and then clicking on the + button to select Rackspace. Once the Cloud Provider is selected, a user can select the region, size and image needed. Ports are opened by default on Rackspace Cloud Servers to accommodate some of the port requirements (e.g. 32000-59000 for Docker, 6783 for Weave, and 5672 for RabbitMQ). A Cluster is then selected and the number of Cloud Servers can be specified.

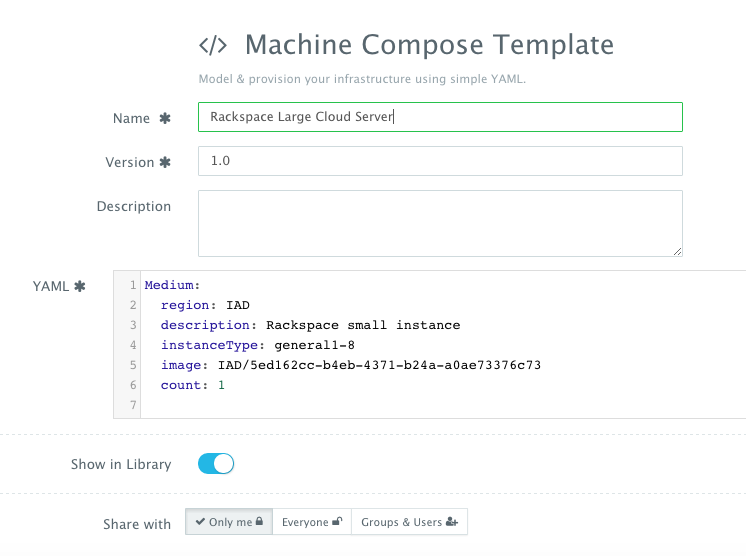

YAML-based Machine Compose Template – A user can first create a Machine Compose template for Rackspace by navigating to Manage > Templates and then selecting Machine Compose.
Here’s the template for requesting a 4GB Cloud Server.
The supported parameters for the Machine Compose template are summarized below:
- description: Description of the blueprint/template
- instanceType: Cloud provider specific value (e.g. general1-4)
- region: Cloud provider specific value (e.g. IAD)
- image: Mandatory – fully qualified image ID/name (e.g. IAD/5ed162cc-b4eb-4371-b24a-a0ae73376c73 or vSphere VM Template name)
- username: Optional – only for vSphere VM Template username
- password: Optional – only for vSphere VM Template encrypted password. You can encrypt the password using the endpoint https://www.dchq.io/#/encrypt
- network: Optional – Cloud provider specific value (e.g. default)
- securityGroup: Cloud provider specific value (e.g. dchq-security-group)
- keyPair: Cloud provider specific value (e.g. private key)
- openPorts: Optional – comma separated port values
- count: Total no of VM’s, defaults to 1.
Once the Machine Compose template is saved, a user can request this machine from the Self-Service Library. A user can click Customize and then select the Cloud Provider and Cluster to use for provisioning these Rackspace Cloud Servers.
Deploying the Multi-Tier PHP Application on the Rackspace Cluster
Once the Cloud Servers are provisioned, a user can deploy a multi-tier, Docker-based PHP applications on the new Cloud Servers. This can be done by navigating to the Self-Service Library and then clicking on Customize to request a multi-tier application.

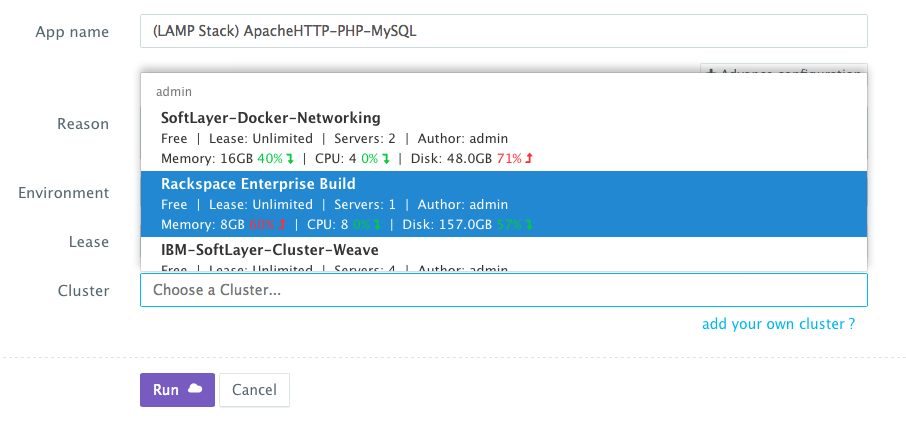

A user can select an Environment Tag (like DEV or QE) and the Rackspace Cluster created before clicking on Run.

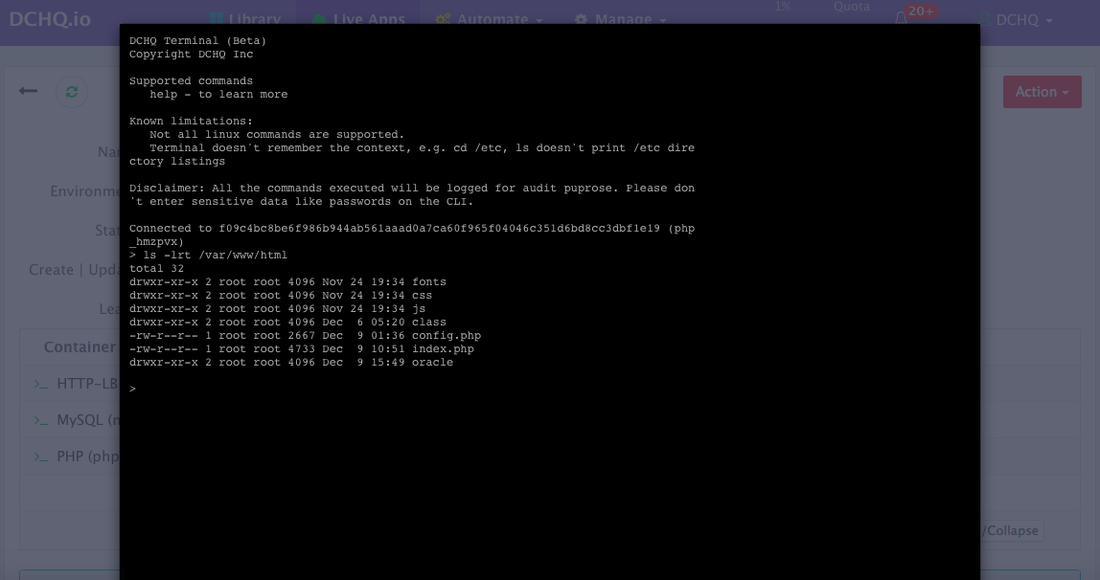

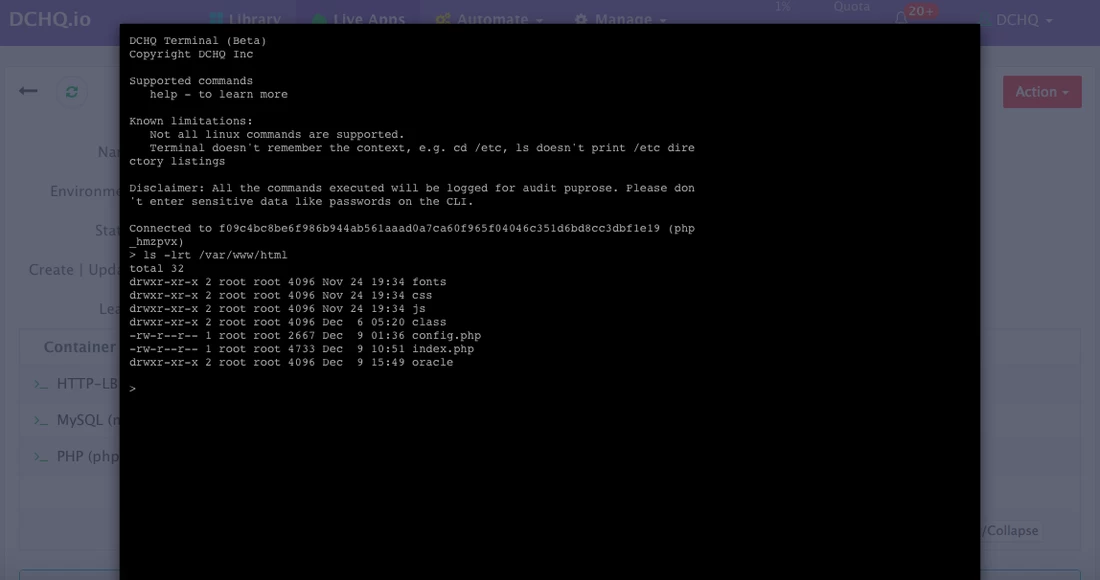

Accessing The In-Browser Terminal For The Running Containers
A command prompt icon should be available next to the containers’ names on the Live Apps page. This allows users to enter the container using a secure communication protocol through the agent message queue. A white list of commands can be defined by the Tenant Admin to ensure that users do not make any harmful changes on the running containers.
For the PHP deployment for example, we used the command prompt to make sure that the PHP code is indeed under the /var/www/html/ directory.

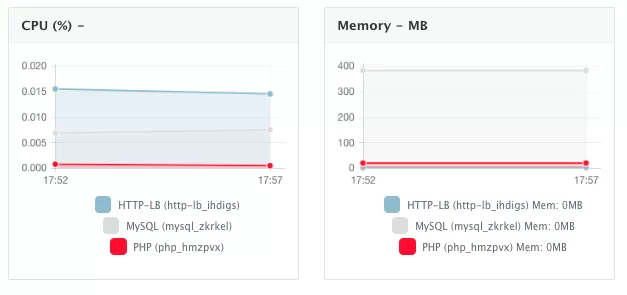

Monitoring the CPU, Memory & I/O Utilization of the Running Containers

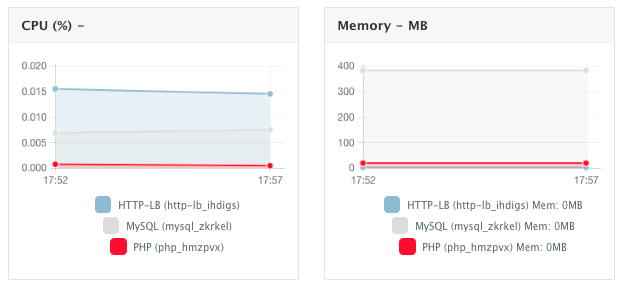

Once the application is up and running, our developers monitor the CPU, Memory, & I/O of the running containers to get alerts when these metrics exceed a pre-defined threshold. This is especially useful when our developers are performing functional & load testing.
A user can perform historical monitoring analysis and correlate issues to container updates or build deployments. This can be done by clicking on the Actions menu of the running application and then on Monitoring. A custom date range can be selected to view CPU, Memory and I/O historically.
Enabling the Continuous Integration Using Automated App Run
For developers wishing to follow the “immutable” containers model by rebuilding Docker images containing the application code and spinning up new containers with every application update, DCHQ provides an automated image build and automated app run features that allow developers to automatically create Docker images from Dockerfiles or private GitHub projects containing Dockerfiles, and then spin up full LAMP stacks using the latest images by scheduling the application deployment and customizing the application lease.
As explained in the Docker image build section, a user can schedule two parallel builds for the PHP image (that’s based on php:5.6-apache).
- latest: one build will constantly override the latest tag with the latest changes committed to your GitHub project
- {{date}} or {{timestamp}}: a parallel build that will back up all the images created using either a formatted date or time-stamp for the tag name

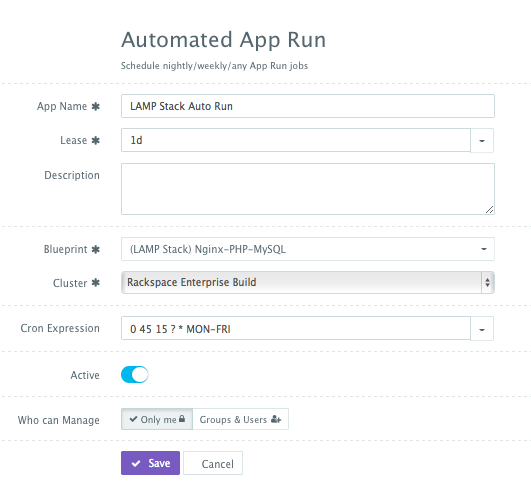

A user can then navigate to Automate > App Run and then click on the + button to create a new “Automated App Run” policy. A user can then complete the required fields – like:
- App Name: the name that will be given to the application deployed
- Lease: by default, an unlimited lease is selected. However an automated app run is most useful for DEV/TEST environments where users are expecting an already running application with the latest code every time they walk into the office in the morning. For that, users can provide a lease of 1-day or 1-week — depending on their needs.
- Blueprint: a user can search for an already created YAML-based application template (or blueprint) — similar to the examples given in this project.
- Cluster: this is the cluster on which the application will be deployed. A user will only see a list of clusters to which he/she has been given access to.
- Cron Expression: the application deployment can be scheduled using these simple cron expressions. For example, 0 45 15 ? * MON-FRI will fire off the application deployment at 3:45pm UTC time between Monday-Friday.
- Who Can Manage: a user can provide granular entitlements here to dictate who else can manage this “App Run” policy.
Scaling out the PHP application

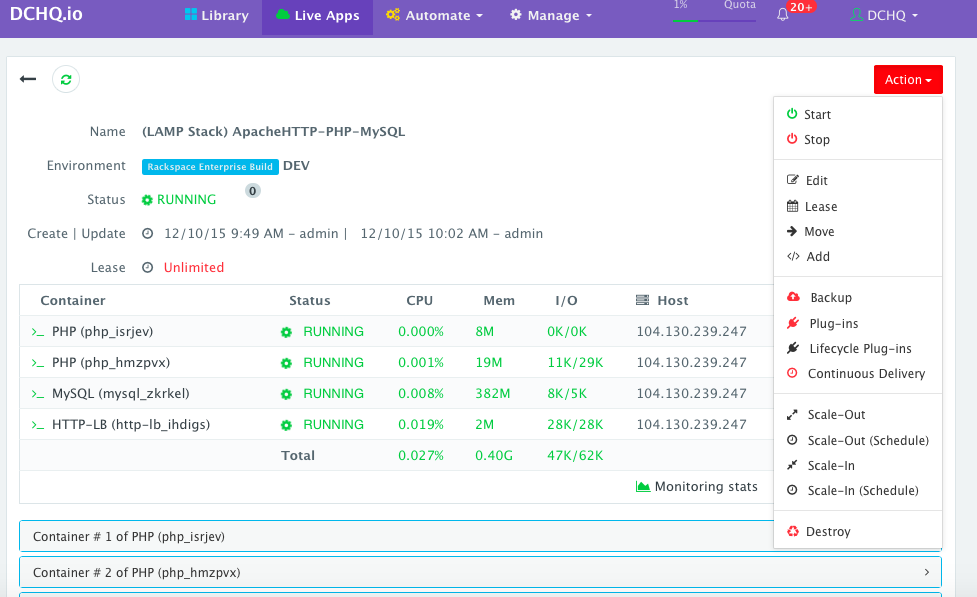

If the running application becomes resource constrained, a user can to scale out the application to meet the increasing load. Moreover, a user can schedule the scale out during business hours and the scale in during weekends for example.

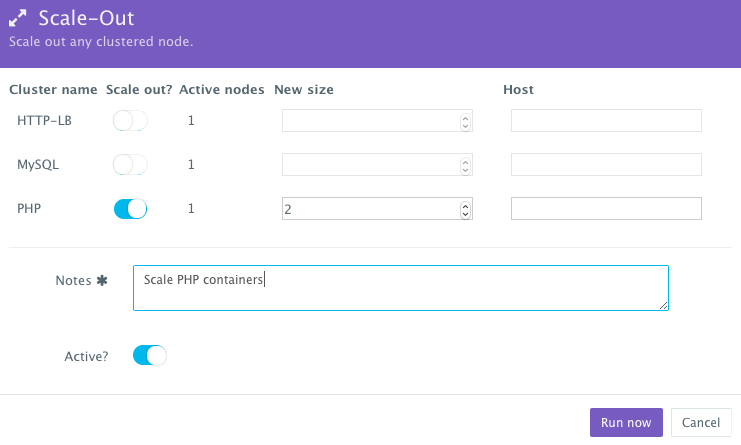

To scale out the cluster of PHP containers from 1 to 2, a user can click on the Actions menu of the running application and then select Scale Out. A user can then specify the new size for the cluster and then click on Run Now.

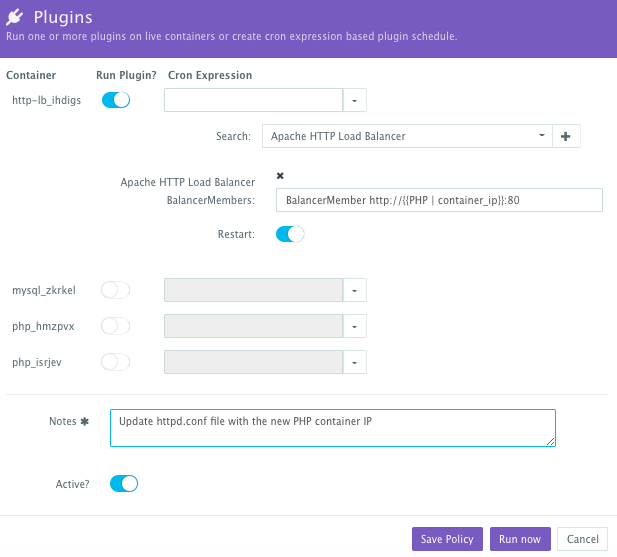

We then used the BASH plug-in to update Apache HTTP Server’s httpd.conf file so that it’s aware of the new application server added. The BASH script plug-ins can also be scheduled to accommodate use cases like cleaning up logs or updating configurations at defined frequencies.
To execute a plug-in on a running container, a user can click on the Actions menu of the running application and then select Plug-ins. A user can then select the load balancer (Apache HTTP Server) container, search for the plug-in that needs to be executed, enable container restart using the toggle button. The default argument for this plug-in will dynamically resolve all the container IP’s of the running PHP containers and add them as part of the httpd.conf file.

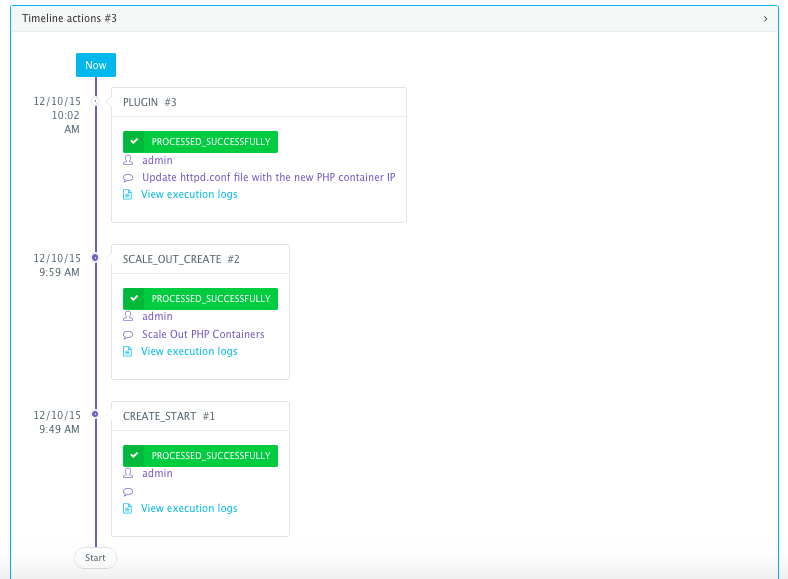

An application time-line is available to track every change made to the application for auditing and diagnostics. This can be accessed from the expandable menu at the bottom of the page of a running application.
Alerts and notifications are available for when containers or hosts are down or when the CPU & Memory Utilization of either hosts or containers exceed a defined threshold.
Conclusion
Containerizing enterprise PHP applications is still a challenge mostly because existing application composition frameworks do not address complex dependencies, external integrations or auto-scaling workflows post-provision.
DCHQ, available in hosted and on-premise versions, addresses all of these challenges and simplifies the containerization of enterprise PHP applications through an advance application composition framework that facilitates cross-image environment variable bindings, extensible BASH script plug-ins that can be invoked at request time or post-provision, and application clustering for high availability across multiple hosts or regions with support for auto scaling.
- Sign Up for FREE on http://DCHQ.io or download DCHQ On-Premise
to get access to out-of-box multi-tier PHPapplication templates along with application lifecycle management functionality like monitoring, container updates, scale in/out and continuous delivery.
